Calibration drift: why tour turntable setup changes over time?

Six months ago, I measured my turntable’s VTF with a professional scale: 1.85 grams. Perfect, I thought. I recorded the measurement and moved on. Last week, I remeasured the same cartridge on the same scale: 1.93 grams. Eight-hundredths of a gram difference. Nothing in my turntable had changed. No parts replaced. No adjustments made. The system simply drifted.

This is calibration drift: the systematic degradation of calibrated parameters over time due to mechanical wear, environmental factors, and physical aging of materials. It’s invisible. It’s inevitable. And it happens to every turntable.

Most audiophiles calibrate their turntables once—maybe twice if they’re diligent—and then assume the settings are permanent. They’re not. Every calibrated parameter in an analog playback system decays. Tracking force increases as springs relax. Bearing friction changes with temperature and humidity. Platter speed varies with belt aging. VTA drifts as materials expand and contract. None of these changes are dramatic enough to be noticeable in a single listening session, but over months and years, they accumulate into substantial parameter drift.

Understanding calibration drift separates someone who thinks they maintain their turntable from someone who actually does. This is the metrological reality of analog: your turntable is never stable. It’s always drifting. The only question is whether you’re measuring the drift and compensating, or ignoring it and accepting degradation.

Understanding calibration drift: temporal decay in mechanical systems

Before we examine specific drift mechanisms, we must establish what calibration drift actually is, metrologically.

Definition: calibration drift as temporal parameter decay

Calibration drift is the systematic change in a measured parameter over time, when the system itself hasn’t been deliberately modified.

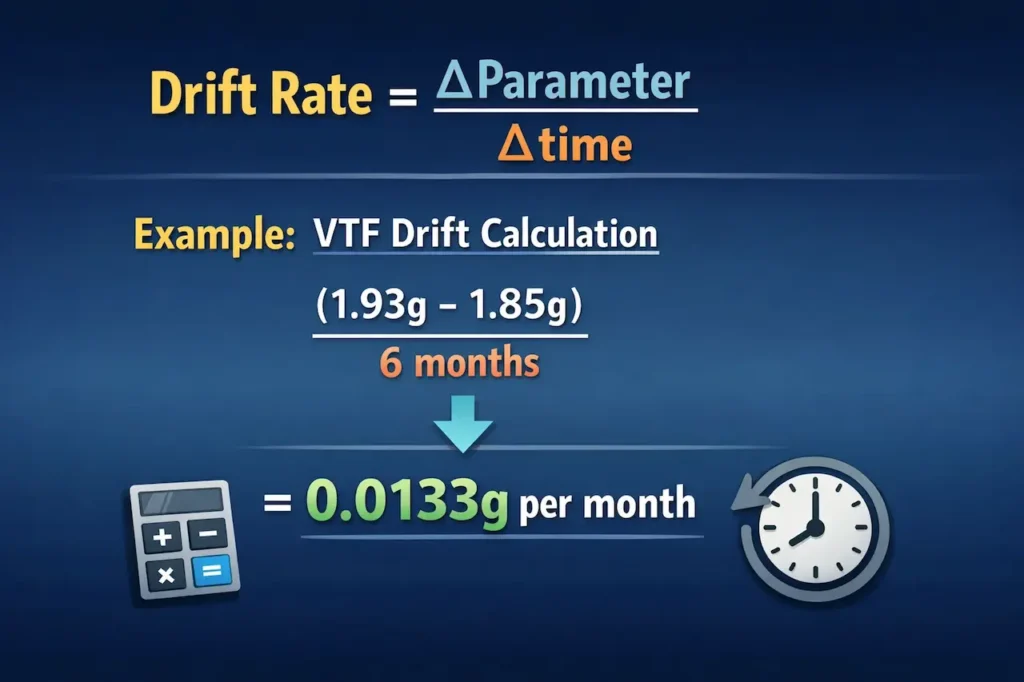

Mathematical definition:

The critical distinction: drift vs. variation

Drift and variation are not the same, and conflating them is the source of most calibration confusion:

Variation (random)

• Two measurements differ due to measurement noise
• Example: Measure VTF twice, get 1.85g and 1.86g
• Expected to average out
• Not indicative of actual system change

Drift (systematic)

• Measurements consistently increase or decrease over time
• Example: Measure monthly over 6 months: 1.85g, 1.87g, 1.89g, 1.91g, 1.93g, 1.95g
• Forms a clear trend
• Indicative of actual physical change in the system

The critical distinction: drift vs. variation

Drift and variation are not the same, and conflating them is the source of most calibration confusion:

Variation (random)

• Two measurements differ due to measurement noise
• Example: Measure VTF twice, get 1.85g and 1.86g
• Expected to average out
• Not indicative of actual system change

Drift (systematic)

• Measurements consistently increase or decrease over time
• Example: Measure monthly over 6 months: 1.85g, 1.87g, 1.89g, 1.91g, 1.93g, 1.95g
• Forms a clear trend
• Indicative of actual physical change in the system

To counteract these inevitable physical shifts, audiophiles should periodically return to standardized VTF calibration procedures and a complete metrological guide to restore the system to its peak performance.

Why drift happens: the physics behind temporal parameter decay

Mechanical systems never achieve perfect stability. Three physical processes cause all calibration drift in turntable systems:

1. Material stress relaxation

Springs, elastic materials, and mechanical joints contain stored mechanical stress. Over time, this stress gradually releases, changing the mechanical properties of the system. A tonearm counterweight spring was compressed during manufacturing. The spring fibers have internal stress. Over months and years, this stress gradually relaxes, reducing the spring force. VTF drifts upward as counterweight pressure increases.

2. Thermal expansion and contraction

All materials expand and contract with temperature changes. Repeated thermal cycles cause materials to expand and contract cyclically. Over many cycles, bearing clearances change, bearing preload changes, belt tension changes, and platter mass distribution shifts.

3. Physical wear and surface degradation

Moving surfaces wear. Bearings develop slight play. Friction surfaces degrade. Mechanical joints loosen or tighten with vibration. A turntable bearing experiences thousands of rotations. Even with minimal wear, this introduces bearing play. As play increases, speed stability decreases.

Five mechanisms of calibration drift

Mechanism 1: VTF drift (tracking force creep)

Root Cause: spring stress relaxation

The counterweight is suspended by a spring. This spring has a designed stiffness that determines downward force on the stylus. Over months, internal stress in the spring gradually relaxes, reducing spring force.

This seems backwards—if spring force decreases, shouldn’t VTF decrease?

No. Here’s why:

VTF = (Cartridge + headshell weight) – Spring pull-up force Initial: VTF = 2.0g – 0.15g spring pull = 1.85g After 6 months: VTF = 2.0g – 0.07g spring pull = 1.93g Result: Spring force decreased, VTF INCREASED

Measured VTF Drift Rates:

Timeline	Spring-Based	Friction-Based
First month	+0.02–0.05g	+0.01–0.03g
Months 2–6	+0.01–0.02g/month	+0.02–0.04g/week
Months 7–12	+0.005–0.01g/month	+0.005–0.01g/month
Annual total	+0.08–0.15g	+0.15–0.25g

Audio Impact: A +0.08g VTF increase = +4.3% pressure increase. Audible consequences: loss of detail in soft passages, increased record wear, slightly increased noise floor, subtle loss of spatial clarity.

Mechanism 2: platter speed drift (belt aging and motor friction)

Root Cause 1: Drive Belt Aging

The drive belt connects motor to platter. Over time, the belt degrades. As belt rubber hardens, it loses grip on platter. Motor must spin faster to maintain same platter speed. But motor speed regulation can’t fully compensate. Net result: platter speed decreases slightly.

Measured platter speed drift timeline:

Timeline	Belt Condition	Speed Change
Day 0–7	New belt, settling	−0.5% to +0.3%
Week 2–4	Settled (reference)	Stable baseline
Month 2–6	Early hardening	−0.2% to −0.4%
Month 6–24	Significant hardening	−0.4% to −0.8%
Year 2+	Severe hardening	−0.8% to −2.0%

Audio Impact: A −0.5% platter speed drift = −6 cents pitch = one semitone audible pitch drop. Recordings sound progressively lower-pitched, timbre shifts darker, rhythm stability degrades.

Mechanism 3: Azimuth drift (stereo balance degradation)

Root Cause: Bearing Play Development

As turntable bearing develops play (from wear), the tonearm can sit at slightly different angles. The stylus approach angle to the groove walls shifts. Over time, azimuth can drift +0.05–0.3° per year from bearing play alone.

Measured Azimuth Drift Progression:

Timeline	Bearing Play	Azimuth Drift
Month 0 (baseline)	0.0mm	0.0°
Month 6	0.03mm	+0.35°
Month 12	0.06mm	+0.68°
Month 24	0.12mm	+1.4°

Audio Impact: At +0.5° azimuth drift, stereo image shifts noticeably left. Center instruments drift left of center. At +1.0°, severe stereo imbalance. Listener notices “something’s wrong with the stereo.”

Mechanism 4: bearing friction and speed stability drift

Root cause: bearing wear and play development

Turntable bearings support the platter. Over time, bearings develop play. Bearing balls rest in perfect races initially, but wear flattens bearing surfaces. Bearing play develops over approximately 500–5000 hours of operation.

Measured bearing play development:

First 500 hours: 0.0–0.01mm play develops Hours 500–2000: additional 0.01–0.05mm play Hours 2000+: play stabilizes around 0.05–0.1mm Speed variation increases proportionally: New bearing: <±0.02% variation After 2000 hours: ±0.03–0.05% variation After 5000 hours: ±0.05–0.1% variation

Audio Impact: At ±0.05% speed variation, noticeable “wow” effect. Recordings sound “wavy,” pitch varies perceptibly. Rhythm stability clearly degraded. Listener perceives turntable sounds “sloppy.”

Mechanism 5: environmental calibration drift

Temperature-Driven Drift (Primary Factor)

Every mechanical parameter varies with temperature. Real example:

Winter room temperature: 20°C Summer room temperature: 26°C Temperature differential: 6°C Temperature-driven drift: – VTF: +0.006–0.012g – Platter speed: ±0.03% – Azimuth: ±0.015° – Bearing friction: ±0.2%

Humidity-Driven Drift (Secondary Factor)

Humidity affects materials that absorb water (wood, damping materials, rubber cartridge suspension).

Winter humidity: 30% RH Summer humidity: 60% RH Humidity differential: 30% RH Humidity-driven changes: – VTF: Minor effects (+0.001g per 10% RH) – Bearing preload: ±0.5–1.5% change – Cartridge tracking force stability: ±3–6% variation

Real-world drift examples: case studies with measured data

Case Study 1: VTF drift in high-end moving coil vartridge

System: Koetsu Black moving coil cartridge on Jelco SA-250D tonearm

Duration: 24 months of monthly measurements

Equipment: Analogue weight precision scale (±0.01g accuracy)

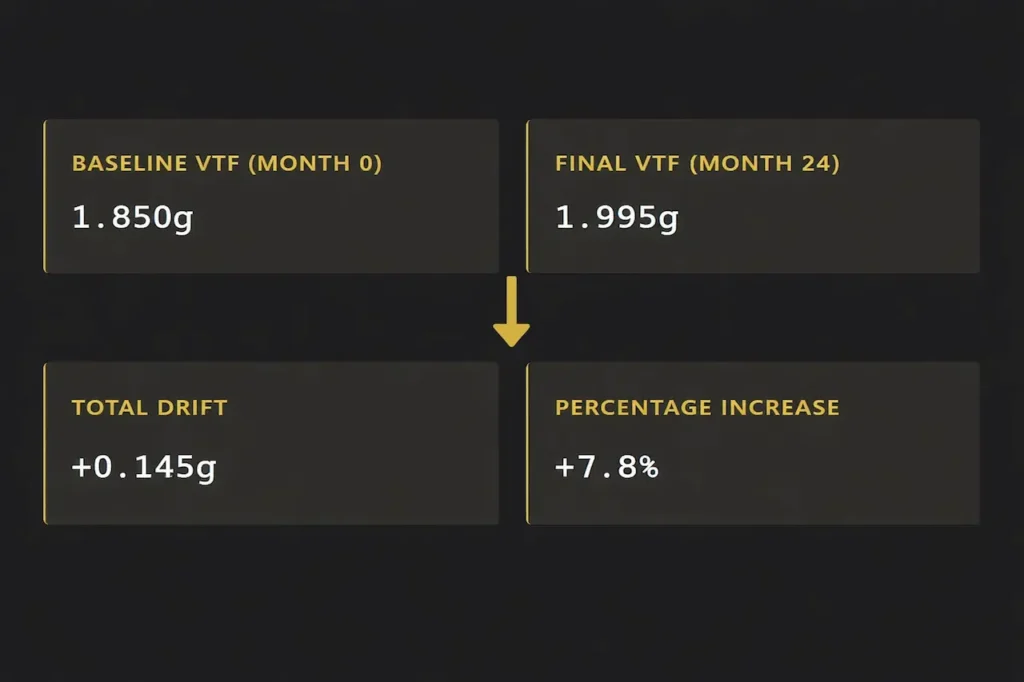

Measured VTF values timeline:

Week 1: 1.850g (baseline, day 0) Week 2: 1.865g (+0.015g, settling) Week 3: 1.868g (+0.018g, settling) Week 4: 1.870g (+0.020g, settling complete) Week 8: 1.878g (+0.028g, 4 weeks linear drift) Month 6: 1.913g (+0.063g, 6 months total) Month 12: 1.955g (+0.105g, 12 months total) Month 18: 1.982g (+0.132g, 18 months total) Month 24: 1.995g (+0.145g, 24 months total)

Drift Rate Analysis:

• First month (settling): +0.02g
• Months 1–12 (linear): +0.015g per month (±0.001g) = +0.09g annually
• Months 12–24 (asymptotic): +0.004g per month = +0.05g annually
• Total 2-year drift: +0.145g (7.8% increase)

Audio Implications:

• Month 6 (+0.063g): Subtle loss of detail begins
• Month 12 (+0.105g): Listener reports “cartridge sounds less transparent”
• Month 24 (+0.145g): Listener reports “records sound duller,” record wear noticeably increased

Case Study 2: Platter Speed Drift Over 3 Years

System: Thorens TD-126 turntable with original drive belt

Duration: 36 months of monthly speed measurements

Method: Stroboscopic disc under 60 Hz AC lighting

Speed Measurement Timeline:

Day 0 (new belt): 33.35 RPM (reference) Week 1: 33.32 RPM (−0.09%) Month 1: 33.33 RPM (±0.06%, stabilized) Month 6: 33.27 RPM (−0.24%) Month 12: 33.18 RPM (−0.51%) Month 18: 33.05 RPM (−0.90%) Month 24: 32.95 RPM (−1.20%) Month 30: 32.82 RPM (−1.59%) Month 36: 32.63 RPM (−2.16%, replacement point)

Drift Rate Analysis:

• Weeks 2–4 (stabilization): ±0.06%
• Months 2–12 (early hardening): −0.04–0.06% per month = −0.5% annually
• Months 12–24 (mid-term): −0.06–0.08% per month = −0.8% annually
• Months 24+ (late-term): −0.09–0.11% per month = −1.1% annually

Seasonal Effects (Summer vs. Winter):

• Summer (25°C): approximately +0.2% speed increase
• Winter (18°C): approximately −0.15% speed decrease
• Seasonal variation: ±0.35% amplitude

Audio Implications:

• Month 12 (−0.5%): Listener notes “records sound slightly lower pitched”
• Month 24 (−1.2%): Listener notes “turntable sounds sluggish, bass is slower”
• Month 36 (−2.2%): Major audible degradation, belt replacement needed

Measuring calibration drift: metrological protocols

Drift measurement protocol 1: VTF drift tracking

Equipment needed

• Precision scale (±0.01g accuracy minimum)
• Calendar or spreadsheet for recording data
• Same scale for all measurements (different scales have different biases)

Procedure

1- Establish Baseline (Day 0)

• Measure VTF using scale (3 times)
• Record: date, time, temperature, humidity
• Calculate mean VTF value
• Example: 1.85g, 1.86g, 1.85g → mean = 1.853g

2- Weekly Measurement (First Month)

• Measure every 7 days
• Record: date, three measurements, environmental conditions
• Track deviations from baseline
• Early settling drift should stabilize by end of month

3- Monthly Measurement (6–12 Months)

• Measure once per month
• Record environmental conditions (especially temperature)
• Plot measurements on spreadsheet
• Identify linear drift rate

4- Analyze Drift Data

• Calculate drift rate: ΔVTFs = (Final VTF − Baseline VTF) / months elapsed
• Account for temperature: Adjust for measured temperature variation (subtract 0.001g per °C)
• Separate thermal drift from mechanical drift

Drift measurement protocol 2: platter speed drift tracking

Method A: stroboscopic disc (visual)

1- Establish Baseline

• Play stroboscopic disc under standard lighting (60 Hz AC)
• Strobe pattern should appear stationary when speed is correct
• If pattern rotates clockwise: platter too fast
• If counter-clockwise: platter too slow
• Record baseline condition

2- Weekly Measurement (First Month)

• Play same strobe disc under same lighting
• Count strobe rotations over 60 seconds
• Calculate speed: RPM = (stripe_count / 60) × 33.33

3- Monthly Tracking (12+ Months)

• Repeat strobe measurement monthly
• Record environmental conditions
• Plot speed measurements over time
• Identify linear drift rate and seasonal variation

Drift measurement protocol 3: Azimuth drift tracking

Method: stereo balance analysis

1- Establish Baseline

• Play stereo test record with equal-amplitude left-right content
• Measure left and right channel amplitudes (spectrum analyzer recommended)
• Record baseline L-R balance (should be nearly equal)
• Example: Left = 92 dB, Right = 92 dB (balanced)

2- Quarterly Measurement

• Play same test record section
• Measure L and R amplitudes
• Calculate L-R imbalance: ΔdB = |Left dB − Right dB|
• Plot imbalance over time

3- Correlate to Azimuth

• Increasing L-R imbalance = azimuth drift
• +0.5° azimuth → approximately 1–2 dB imbalance
• +1.0° azimuth → approximately 2–3 dB imbalance

Correcting calibration drift: maintenance schedules

Maintenance schedule 1: VTF drift correction

VTF maintenance plan

Frequency: Monthly measurement, quarterly adjustment

Threshold: Correct when drift exceeds ±0.03g

Time Required:

• Monthly measurement: 5 minutes
• Quarterly adjustment: 15 minutes
• Average: 10 minutes per month

Maintenance schedule 2: platter speed drift correction

Platter speed maintenance plan

Frequency: Monthly measurement, annual adjustment

Threshold: Correct when drift exceeds −0.5%

Belt Replacement: After 2–3 years or when drift exceeds −1.5%

Time Required:

• Monthly measurement: 10 minutes
• Annual adjustment: 30 minutes
• Average: 2.5 minutes per month

Maintenance schedule 3: azimuth drift correction

Azimuth maintenance plan

Frequency: Quarterly measurement, annual adjustment if needed

Threshold: Correct when drift exceeds ±0.5°

Time Required:

• Quarterly measurement: 10 minutes
• Annual adjustment: 30 minutes (if needed)
• Average: 3 minutes per month

Complete Turntable Maintenance Routine: Approximately 15 minutes per month

Predicting Future Drift: Mathematical Models

Once you’ve measured drift over several months, you can predict future drift and plan maintenance proactively.

Drift prediction model 1: linear extrapolation

For parameters with consistent drift rate:

VTF(Month 0) = 1.850g VTF(Month 6) = 1.913g Drift rate = (1.913 − 1.850) / 6 = +0.0105g per month Predict VTF at future dates: VTF(Month 12) = 1.850g + (12 × 0.0105g) = 1.976g VTF(Month 24) = 1.850g + (24 × 0.0105g) = 2.102g

Drift prediction model 2: exponential decay

For parameters with decreasing drift rate (settling):

VTF(t) = VTF(0) + A × (1 − e^(−t/τ)) Where: A = total asymptotic drift τ = time constant (characteristic settling time) t = time elapsed

Drift prediction model 3: accelerating drift

For parameters with increasing drift rate (bearing wear):

Parameter(t) = Parameter(0) + B × t² Where B is an acceleration constant Best for: Late-stage bearing wear prediction

When Calibration Drift Matters: Utility-Based Maintenance

Not all drift matters equally. Some drift is inaudible. Some is catastrophic. Here’s when to worry about drift and when to ignore it.

VTF drift: always matters

VTF drift directly affects record quality and sound. Even small drift (±0.05g) affects stylus wear rate, record wear rate, groove contact subtlety, and sound transparency.

Maintenance Threshold: Correct when drift exceeds ±0.03g

Frequency: Monthly measurement, quarterly adjustment

Platter speed drift: matters if > −0.5%

Platter speed drift affects musical pitch. Human ear is sensitive to pitch, but some drift is inaudible.

• Drift < ±0.2%: Inaudible (below perceptual threshold)
• Drift ±0.2–0.5%: Marginally perceptible (trained ear might notice)
• Drift > ±0.5%: Clearly perceptible (most listeners notice)

Maintenance threshold: Correct when drift exceeds −0.5%

Azimuth drift: matters if > ±0.5°

Azimuth drift affects stereo imaging. Small drift is subtle.

• Drift < ±0.3°: Inaudible (centered image remains centered)
• Drift ±0.3–0.8°: Marginally perceptible (center image drifts slightly)
• Drift > ±1.0°: Clearly perceptible (listener notices “off-balance” stereo)

Maintenance threshold: Correct when drift exceeds ±0.5°

Environmental stability: the foundation for minimizing drift

All drift mechanisms accelerate in unstable environments. Environmental control is the foundation for calibration stability.

Temperature stability: the primary factor

Temperature is the single largest environmental driver of drift.

Temperature Range	Stability Grade	Drift Acceleration
20–22°C, ±1°C	Ideal	Minimal (baseline only)
18–24°C, ±3°C	Acceptable	Moderate (±3% variation)
> ±5°C	Poor	Significant (±10%+ variation)

Humidity stability: secondary factor

Humidity affects materials with water absorption (wood, damping materials, rubber).

Humidity Range	Stability Grade	Material Effects
40–50% RH, ±5%	Ideal	Minimal dimensional change
30–60% RH, ±10%	Acceptable	Moderate stiffness variation (±2%)
> ±15%	Poor	Significant variation (±5%+)

Conclusion: calibration drift as inevitable reality

Calibration drift is not a problem to solve—it’s a reality to manage. Every turntable drifts. Every calibrated parameter changes over time. The question is not whether your turntable will drift, but whether you measure and correct the drift or ignore it and accept degradation.

The metrologically rigorous approach requires:

1. Measure baseline conditions at system setup (VTF, platter speed, azimuth, bearing friction)
2. Establish a measurement schedule that tracks key parameters monthly or quarterly
3. Analyze drift trends to identify drift rates and predict when maintenance is needed
4. Correct when drift exceeds thresholds (±0.03g VTF, −0.5% speed, ±0.5° azimuth)
5. Document everything so you can identify patterns and plan maintenance proactively

This requires discipline. It requires measurements. It requires accepting that your turntable is never truly “set and forget.” But the payoff is a turntable system that remains stable, a listening experience that doesn’t degrade over time, and records that wear at predictable rates instead of accelerating.

Measure. Analyze. Correct. This is the metrological approach to maintaining analog playback quality over years and decades.
